Mimosa B5x
-5%

Mimosa B5x

SKU MIM-B5X Categories , Tags , , Brands:

10 متوفر في المخزون

السعر الأصلي هو: $483.55.السعر الحالي هو: $459.37.

10 متوفر في المخزون

  • Fast Delivery UAE
  • Genuine Products
  • B2B Bulk Pricing
  • Warranty Support

الوصف

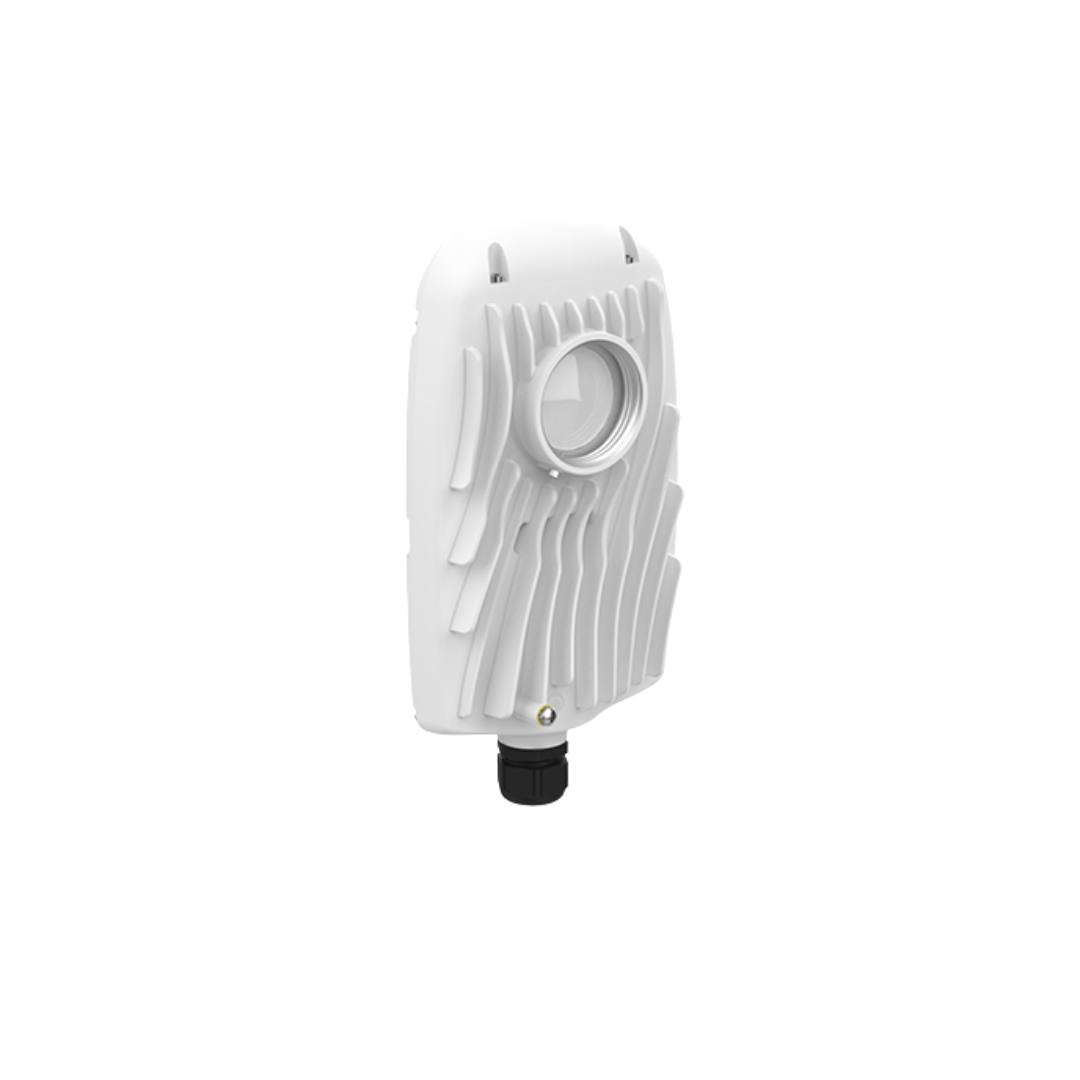

📖 Overview – Mimosa B5x Backhaul Radio

The Mimosa B5x offers the perfect blend of performance and flexibility.
Powered by advanced OFDM radio technology and 4×4 MIMO, it ensures high capacity and stable links even in noisy environments.
Moreover, its modular antenna design supports 8 dBi, 12 dBi, 16 dBi, or 25 dBi horns, allowing installers to fine-tune coverage and range.

In addition, the B5x features GPS Sync for interference-free operation when multiple radios are co-located.
Because it’s built with an IP67-rated aluminum housing, it withstands dust, rain, and extreme temperatures.
As a result, it’s a perfect backhaul choice for wireless service providers, campus networks, and video surveillance systems.

⚙️ Technical Specifications

  • Frequency Range: 4.9 – 6.4 GHz

  • Throughput: Up to 1.5 Gbps aggregate

  • Modulation: 256-QAM OFDM

  • Antenna Compatibility: 8 / 12 / 16 / 25 dBi N5-X Series antennas

  • Synchronization: GPS Sync for co-location deployment

  • Power: PoE Input 24 – 56 V (25 W max)

  • Interfaces: 1 × Gigabit Ethernet port

  • Enclosure: IP67 aluminum housing

  • Operating Temperature: –40 °C to +55 °C

  • Weight: ≈ 0.5 kg

🌟 Key Features & Benefits

  • ⚡ High Speed Links: Achieve up to 1.5 Gbps aggregate throughput.

  • 🛰 GPS Synchronization: Eliminates self-interference for dense deployments.

  • 📡 Modular Antenna Design: Choose the right horn for every distance.

  • 🧱 Weatherproof Build: IP67 housing ensures long-term durability.

  • 💡 Low Latency: Ideal for real-time video and voice applications.

  • 🔌 Power Efficient: Runs on standard PoE for easy installation.

🏢 Applications

The Mimosa B5x is perfect for:

  • Wireless ISP distribution links

  • Video surveillance and security backhaul

  • Enterprise and industrial connectivity

  • Campus and multi-building networks

🧰 What’s in the Box

  • Mimosa B5x Radio Unit

  • Gigabit PoE Injector

  • Mounting Bracket Kit

  • Quick Start Guide

🔗 Related Links

معلومات إضافية

الوزن 0.88 كيلوجرام
الأبعاد 24.0 × 14.0 × 8.0 سنتيميتر
