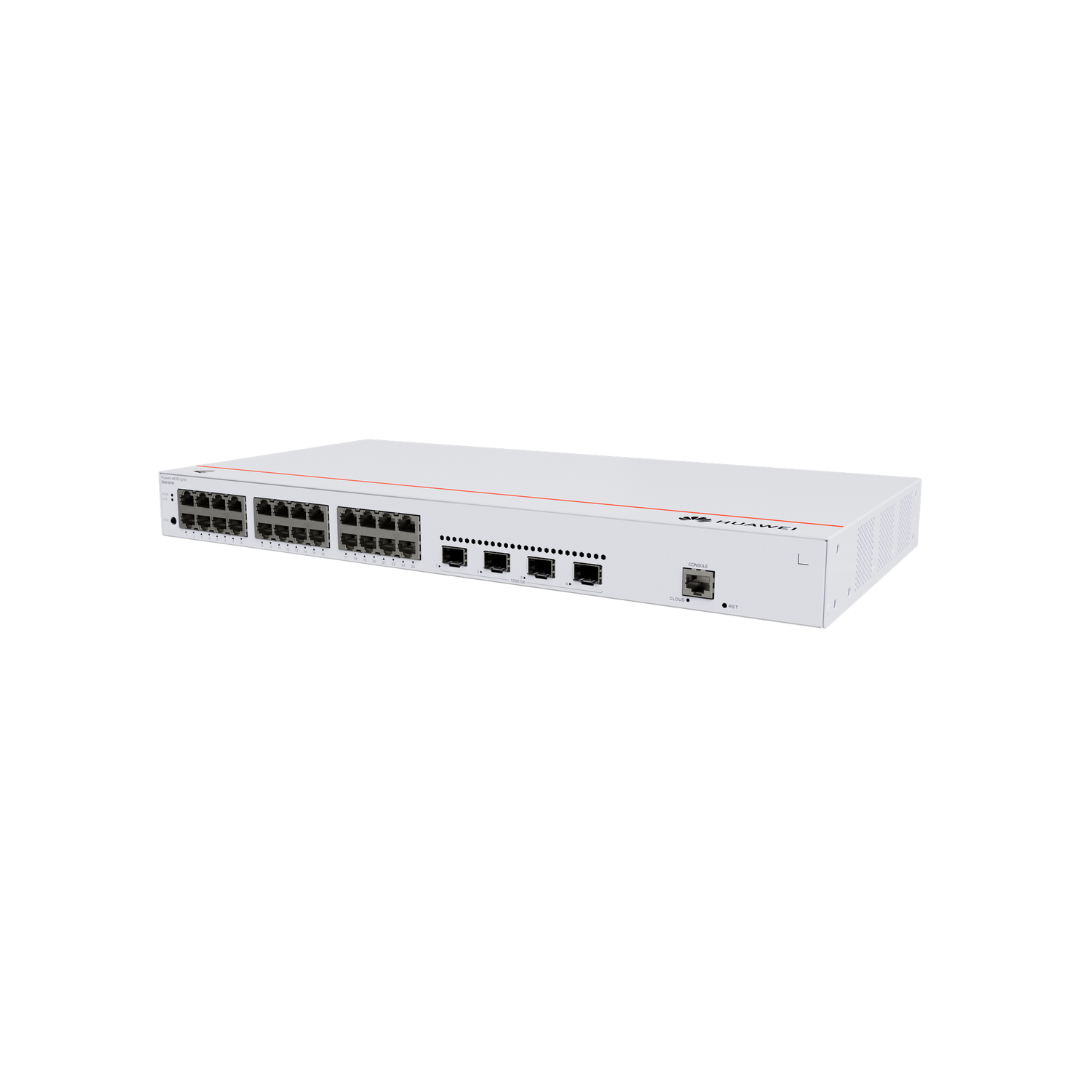

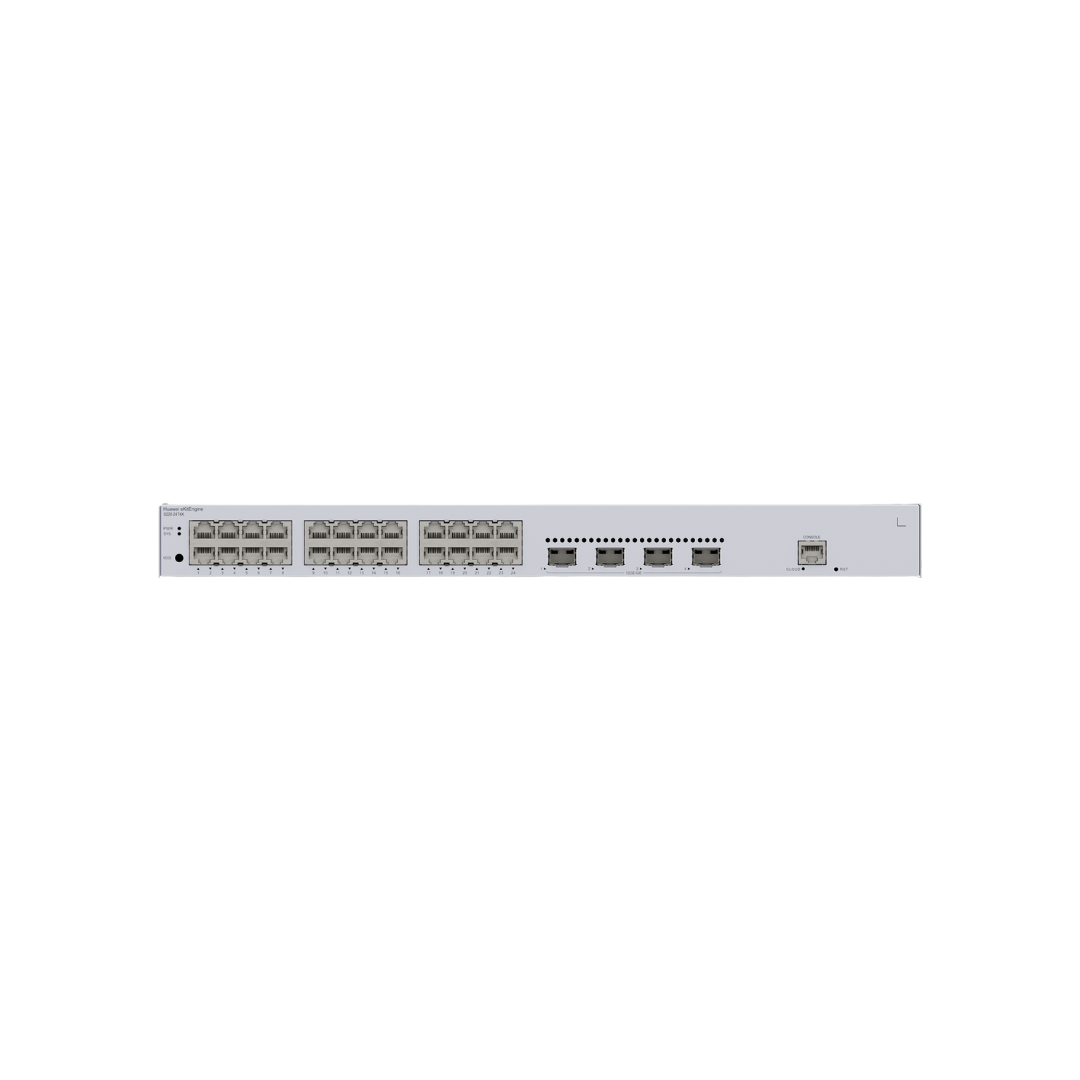

Huawei S220-24T4X Switch

Description

📖 Overview – Huawei S220-24T4X Switch

The Huawei S220-24T4X Switch is a Layer-2 managed switch made for modern business environments.
It supports advanced features such as VLANs, ACLs, QoS, and link aggregation, ensuring efficient and secure data flow.
In addition, its 4 × 10G SFP+ uplink ports allow high-speed connections to core or backbone networks.
Therefore, your network can handle more traffic with greater stability and less delay.

Furthermore, the switch supports strong management tools that simplify configuration and monitoring.
As a result, IT teams can control traffic, isolate users, and protect data easily.
In addition, the energy-efficient chipset reduces power use while maintaining excellent performance.
Consequently, it helps lower operational costs without compromising quality.
Altogether, the Huawei S220-24T4X Switch delivers power, performance, and flexibility in one sleek unit.

⚙️ Huawei S220-24T4X Switch Specifications

Specification	Details
Model	S220-24T4X
Downlink Ports	24 × 10/100/1000 BASE-T
Uplink Ports	4 × 10 G SFP+
Switching Capacity	128 Gbps
Packet Forwarding Rate	95 Mpps
MAC Address Table	16K entries
Power Supply	Built-in AC 100–240 V
Power Use	≤ 35 W
Chassis	1U Metal Rack-Mount
Dimensions (H×W×D)	43.6 × 442 × 220 mm
Operating Temp	0 °C – 45 °C
Ideal For	Offices, Schools, Retail, Enterprises

🌟 Key Features of Huawei S220-24T4X Switch

⚙️ High-Speed Access: 24 Gigabit ports provide fast connections for all wired devices.
🌐 Ultra-Fast Uplinks: Four 10 G SFP+ uplinks ensure reliable and high-capacity data transfer.
🧠 Smart Management: Supports VLANs, QoS, and security controls for smooth traffic flow.
💪 Strong Metal Housing: Withstands heat, dust, and 24/7 operation in professional setups.
🔌 Plug-and-Play Ready: Easy to install and configure for immediate network access.
💡 Energy Efficient: Uses less power, helping you save on energy costs.
🔄 Scalable and Reliable: Grows with your business as device demands increase.

🏢 Ideal Applications of Huawei S220-24T4X Switch

The Huawei S220-24T4X Switch suits a wide range of business environments.
For example, it connects offices with multiple desktops, Wi-Fi access points, and IP phones.
Moreover, it performs perfectly in retail stores, schools, and small data centers that require 10G uplinks.
In addition, the managed functions allow easy monitoring, traffic prioritization, and user segmentation.
Therefore, it ensures smooth network operation and long-term reliability.
Consequently, businesses gain improved speed, stability, and control for all connected devices.
