Mimosa C5x Full Link with 25dBi Antenna

Description

📌 Overview – Mimosa C5x Full Link with 25dBi Antenna

The Mimosa C5x is one of the most versatile outdoor radios in the 5 GHz range. Because it supports 4 modular antennas, it can be tuned for short, medium, or long distances. With the 25dBi dish antenna, the device becomes a powerful long-range point-to-point link.

In addition, the C5x provides strong noise filtering and clean performance due to its advanced radio design. Moreover, the link remains stable even in crowded environments thanks to OFDM, GPS Sync, and advanced interference control.

The radio can deliver 700+ Mbps, and therefore it works well for high-capacity backhaul. Also, the device uses 48V PoE, so installation is simple and safe. The rugged body protects the radio from heat, dust, and weather. Consequently, the unit is suitable for harsh outdoor conditions.

Furthermore, the Mimosa Cloud system allows remote monitoring and control. This makes network management easier and reduces on-site maintenance. For full technical details, you can visit the official Mimosa product page:
👉 https://www.mimosa.co/products/c5x

📡 Wireless Performance – Mimosa C5x Full Link

• Up to 700+ Mbps throughput

• 5 GHz 2×2 MIMO radio

• Clean signal performance with GPS Sync

• Long-range capability using the 25dBi antenna

• Low-latency link for real-time applications

• Wide channel support (20/40/80 MHz)

These features help the Full Link kit deliver a strong and stable long-distance connection.

⚙️ Technical Specifications – Mimosa C5x with 25dBi Antenna

Radio Unit

• 2×2 MIMO

• 5.1–5.9 GHz

• 256-QAM support

• Gigabit Ethernet port

• 48V passive PoE input

• Low power use (8–12 W)

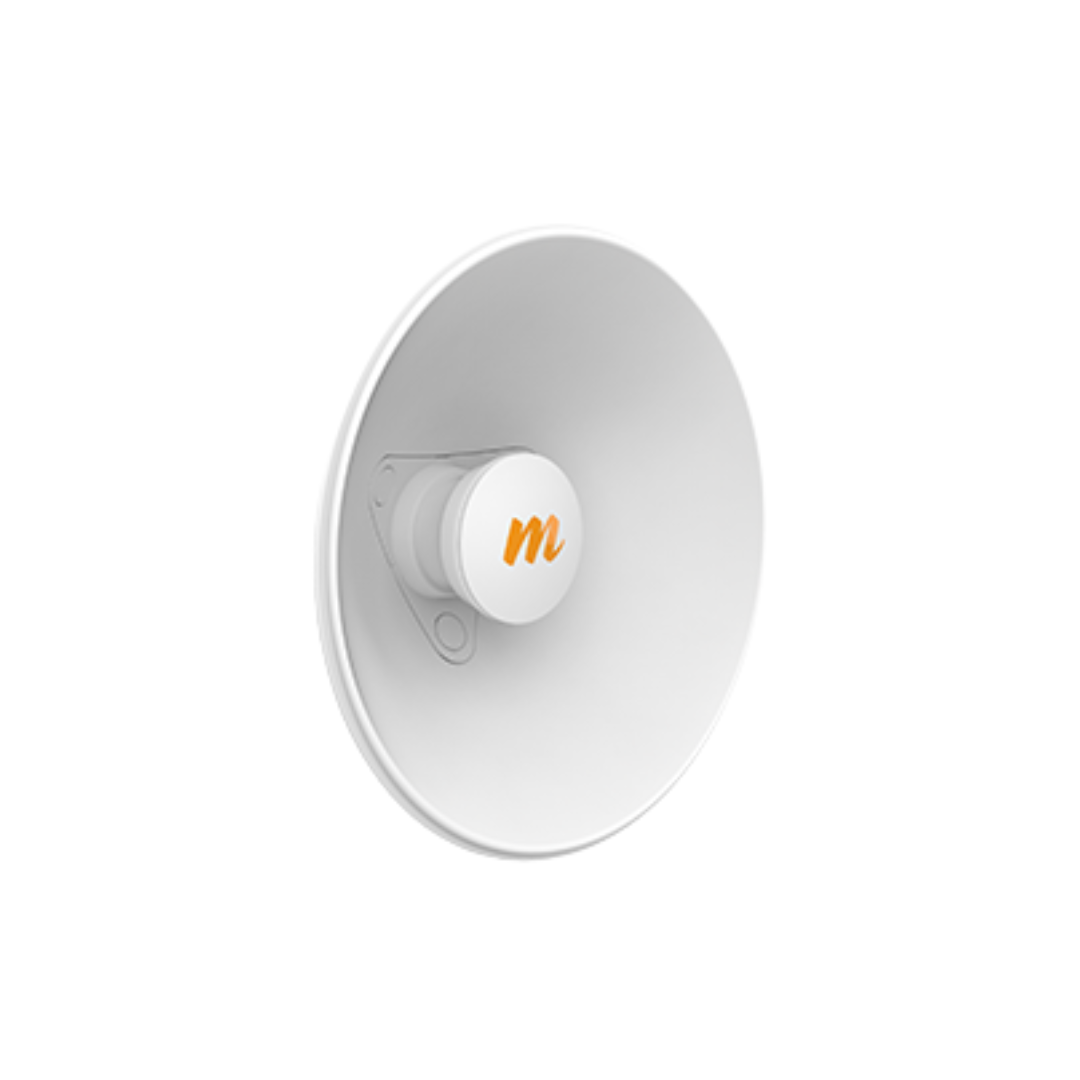

Antenna (25dBi Dish)

• Gain: 25 dBi

• Narrow beamwidth for long range

• Low side-lobe design

• Rugged outdoor build

Environmental

• –40°C to +55°C

• IP55 outdoor protection

🌟 Key Features of the Mimosa C5x Full Link

• Complete long-range point-to-point kit

• Includes 25dBi high-gain antenna

• Up to 700+ Mbps throughput

• GPS Sync for cleaner operation

• Rugged outdoor design

• Stable 48V PoE installation

• Cloud managed for easy maintenance

• Clean signal performance in noisy areas

🏢 Best Applications

• Point-to-point wireless backhaul

• CCTV / surveillance transport

• WISP distribution links

• Warehouse, farm, and industrial connectivity

• Building-to-building networking

• Rural long-distance links

• Temporary event setups

📦 What’s Included

• 1 × Mimosa C5x Radio

• 1 × Mimosa 25dBi Dish Antenna

• Mounting hardware

• Quick start guide

• (PoE injector optional depending on bundle)
